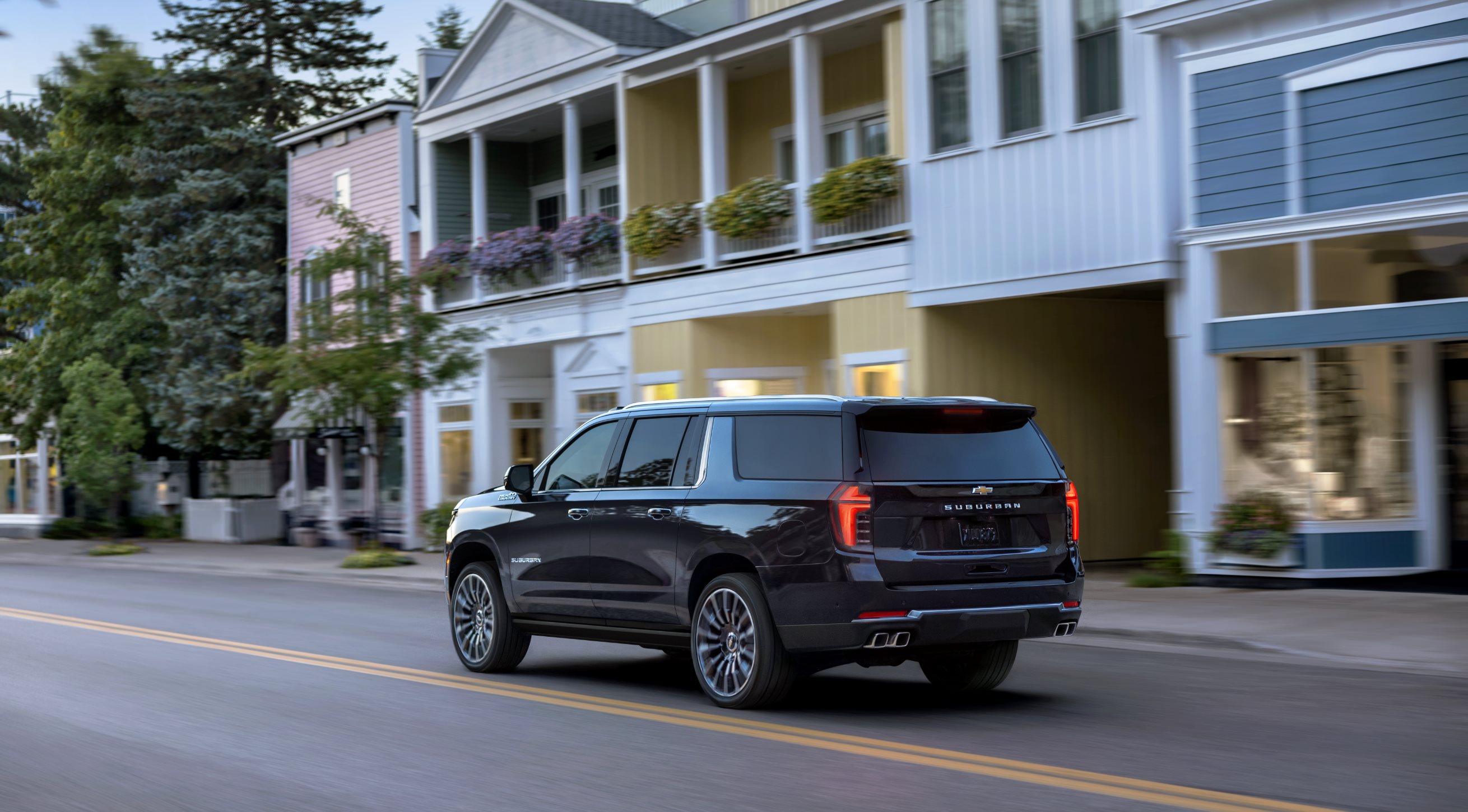

2025 Chevrolet Suburban

View Photo Gallery

View All Colors

Image Gallery

Actual Vehicle Not Shown

MECHANICAL

EXTERIOR

ENTERTAINMENT

INTERIOR

SAFETY

MECHANICAL

Suspension, Magnetic Ride Control

GVWR, 7700 lbs. (3493 kg) (Standard on 4WD models with (L84) 5.3L EcoTec3 V8 engine or (L87) 6.2L EcoTec3 V8 engine. Standard with (LZ0) Duramax 3.0L Turbo-Diesel engine.)

Keyless start, push button

Automatic Stop/Start

Engine control, stop/start system disable button, non-latching

Engine air filtration monitor

Engine, 6.2L EcoTec3 V8 with Dynamic Fuel Management, Direct Injection and Variable Valve Timing, includes aluminum block construction (420 hp [313 kW] @ 5600 rpm, 460 lb-ft of torque [624 Nm] @ 4100 rpm)

Fuel, gasoline, E15 (Standard with (L87) 6.2L EcoTec3 V8 engine only.)

Transfer case, active, single-speed, electronic Autotrac does not include neutral. Cannot be dinghy towed (4WD models only. Deleted when (NHT) Max Trailering Package is ordered.)

Differential, mechanical limited-slip

4-wheel drive

Cooling, external engine oil cooler, heavy-duty air-to-oil integral to driver side of radiator (Deleted when (LZ0) Duramax 3.0L Turbo-Diesel engine is ordered.)

Cooling, auxiliary transmission oil cooler, heavy-duty air-to-oil

Battery, 730 cold-cranking amps with 80 amp hour rating (Standard with (L87) 6.2L EcoTec3 V8 engine only.)

Alternator, 220 amps (Standard with (L87) 6.2L EcoTec3 V8 engine only.)

Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way connector and 2" trailering receiver

Trailer sway control

Hitch Guidance

Suspension, front coil-over-shock with stabilizer bar

Suspension, rear multi-link with coil springs

Steering, power

Transmission, 10-speed automatic electronically controlled with overdrive, includes Traction Select System including tow/haul (Standard with (L87) 6.2L EcoTec3 V8 engine only.)

Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors

Exhaust, dual system with dual twin polished stainless-steel tips

Mechanical Jack with tools

Rear axle, 3.23 ratio
